| CITO SLIM JOGGER | Joggers for AngleâLock™ |
 |
 |

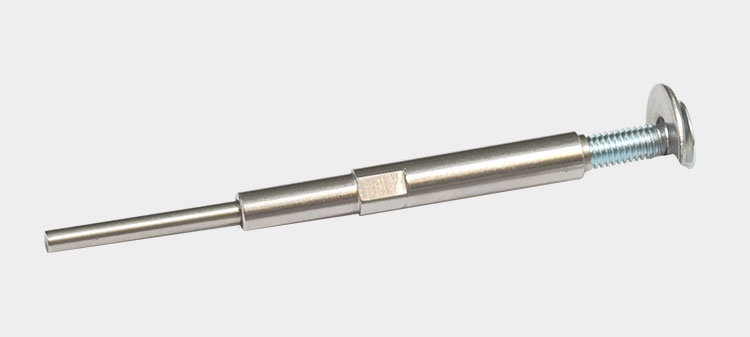

CITO SLIM JOGGER
| Description | Unit | Order no. | |
|---|---|---|---|
|
CITO SLIM JOGGER 7 mm | 0.28" with washer |
25 pc. | BKA00040 |

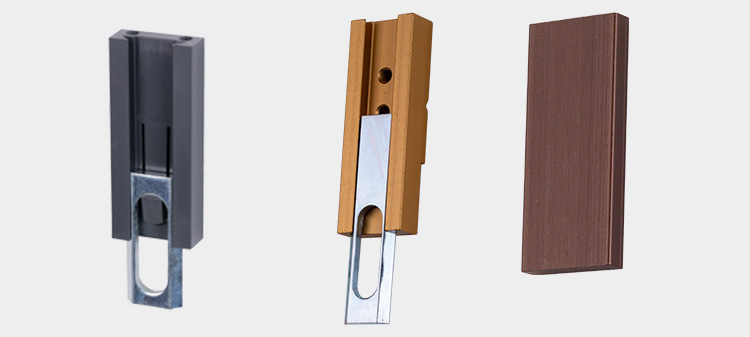

Joggers for AngleâLock™
Composite Jogger Assembly
|
Including screws with cross recess drive |
|||
| Description | Unit | Order no. | |
|---|---|---|---|
 |
Composite Jogger Assembly (Standard Slide) Body length 61 mm, total length 81 mm |
50 pcs. | BKA07001 |
 |
Composite Jogger Assembly (Long Slide) Body length 61 mm, total length 103 mm |
50 pcs. | BKA07002 |
 |
Composite Jogger Assembly (151 mm Slide) Body length 61 mm, total length 139 mm |
25 pcs. | BKA07003 |
 |
Composite Jogger Assembly (251 mm Slide) Body length 61 mm, total length 235 mm |
25 pcs. | BKA07004 |
Jogger – Universal
| Description | Unit | Order no. | |
|---|---|---|---|
 |
Jogger – Universal – Front/Rear | 25 pcs. | BKA00201 |
 |
Jogger – Universal – Side | 25 pcs. | BKA00202 |
| 151 mm Slide | |||
 |
Jogger – Universal – Front/Rear (151 mm Slide) | 25 pcs. | BKA00203 |
 |
Jogger – Universal – Side (151 mm Slide) | 25 pcs. | BKA00204 |
| 251 mm Slide | |||
 |
Jogger – Universal – Front/Rear (251 mm Slide) | 25 pcs. | BKA00205 |
|
Jogger – Universal – Side (251 mm Slide) | 25 pcs. | BKA00206 |
| 7/16" Drop Guide W | |||
 |
Jogger – Universal – 7/16" Drop Guide W | 25 pcs. | BKA00207 |
 |
Jogger – Universal – 7/16" Drop Guide W (151 mm Slide) | 25 pcs. | BKA00208 |
 |
Jogger – Universal – 7/16" Drop Guide W (251 mm Slide) | 25 pcs. | BKA00209 |
| Drop Guide Solid | |||
 |
Jogger – Universal – 1/4" Drop Guide Solid | 25 pcs. | BKA00211 |
|
Jogger – Universal – 3/8" Drop Guide Solid | 25 pcs. | BKA00212 |
|
Jogger – Universal – 5/16" Drop Guide Solid | 25 pcs. | BKA00213 |
| 10 mm Drop Guide | |||
| Jogger – Universal – 10 mm Drop Guide W/Slide | 10 pcs. | BKA08001 | |
| Jogger – Universal – 10 mm Drop Guide Long Slide | 10 pcs. | BKA08002 | |
| Jogger – Universal – 10 mm Drop Guide Narrow Slide | 10 pcs. | BKA08003 | |
Jogger – Grid Tool
| Description | Unit | Order no. | |
|---|---|---|---|
 |
Jogger – Grid Tool – Front/Rear | 25 pcs. | BKA00100 |
 |
Jogger – Grid Tool – Side | 25 pcs. | BKA00101 |
|
Jogger – Grid Tool – Rear with hat | 25 pcs. | BKA00102 |
| 151 mm Slide | |||
 |
Jogger – Grid Tool – Front/Rear (151 mm Slide) | 25 pcs. | BKA00103 |
|
Jogger – Grid Tool – Side (151 mm Slide) | 25 pcs. | BKA00104 |
|
Jogger – Grid Tool – Rear with hat (151 mm Slide) | 25 pcs. | BKA00105 |
| 251 mm Slide | |||
 |
Jogger – Grid Tool – Front/Rear (251 mm Slide) | 25 pcs. | BKA00106 |
|
Jogger – Grid Tool – Side (251 mm Slide) | 25 pcs. | BKA00107 |
|
Jogger – Grid Tool – Rear with hat (251 mm Slide) | 25 pcs. | BKA00108 |
Jogger – Special
| Description | Unit | Order no. | |
|---|---|---|---|
 |
Side Jogger for narrow flat top Mounting Rail | 25 pcs. | BKA00501 |
 |
Pin Jogger (8.0 × 3.0 mm) | 25 pcs. | BKA00502 |
 |
CITO SLIM JOGGER 7 mm | 0.28" with washer |
25 pcs. | BKA00040 |
Jogger – Special Long Slide 44 mm
| Description | Unit | Order no. | |
|---|---|---|---|
| Universal | |||
 |
Jogger – Universal – Front/Rear (44 mm Slide) | 25 pcs. | BKA00301 |
 |
Jogger – Universal – Side (44 mm Slide) | 25 pcs. | BKA00302 |
| Universal – Drop Guide | |||
 |
Jogger – Universal – Drop Guide (44 mm Slide) | 25 pcs. | BKA00303 |
|
Jogger – Universal – Drop Guide V2 (44 mm Slide) | 25 pcs. | BKA00304 |
| Grid Tool | |||
 |
Jogger – Grid Tool – Rear with hat (44 mm Slide) | 25 pcs. | BKA00305 |
 |
Jogger – Grid Tool – Side (44 mm Slide) | 25 pcs. | BKA00306 |
Jogger – Grid Tool and Universal – Body
| Description | Unit | Order no. |
|---|---|---|
| Grid Tool | ||
| Jogger – Grid Tool – Body – Front/Rear | 25 pcs. | BKA00401 |
| Jogger – Grid Tool – Body – Side | 25 pcs. | BKA00402 |
| Universal | ||
| Jogger – Universal – Body – 7/16" Drop Guide | 25 pcs. | BKA00403 |
| Jogger – Universal – Body – Front/Rear | 25 pcs. | BKA00404 |
| Jogger – Universal – Body – Side | 25 pcs. | BKA00405 |
Extended Jogger Slide
| Description | Unit | Order no. | |
|---|---|---|---|
| Grid Tool | |||
 |
151 mm Slide – Jogger – Grid Tool – Front/Rear | 25 pcs. | BKA00604 |
 |
251 mm Slide – Jogger – Grid Tool – Front/Rear | 25 pcs. | BKA00608 |
| Universal – 151 mm Slide | |||
 |
151 mm Slide – Jogger – Universal – Front/Rear | 25 pcs. | BKA00601 |
|
151 mm Slide – Jogger – Universal – Drop Guide | 25 pcs. | BKA00603 |
| Universal – 251 mm Slide | |||
 |
251 mm Slide – Jogger – Universal – Front/Rear | 25 pcs. | BKA00605 |
 |
251 mm Slide – Jogger – Universal – Drop Guide | 25 pcs. | BKA00607 |
Download
Here you can download the template for the respective cutting geometry on a 1:1 scale.
Please ensure that the cutting contour is adjusted accordingly.
The following file formats are available for this:
Composite Jogger Assembly
